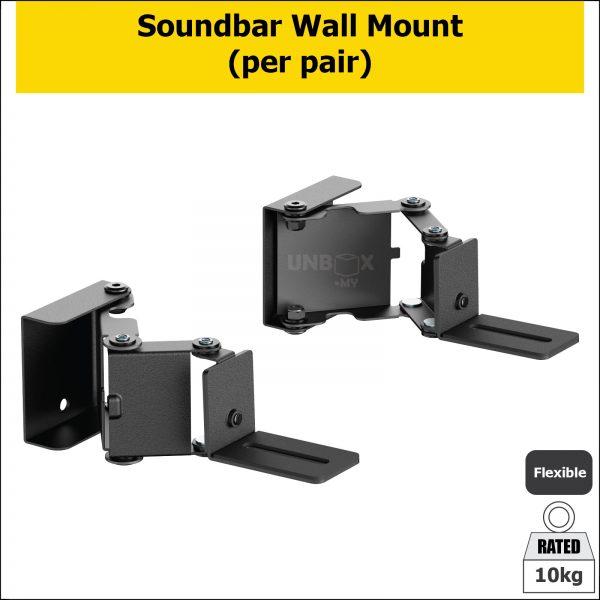

LI-MOUNT SB-74W Flexible Extend-out Soundbar Wall Mount
Seeking for high-fidelity sound reproduction from your soundbar?

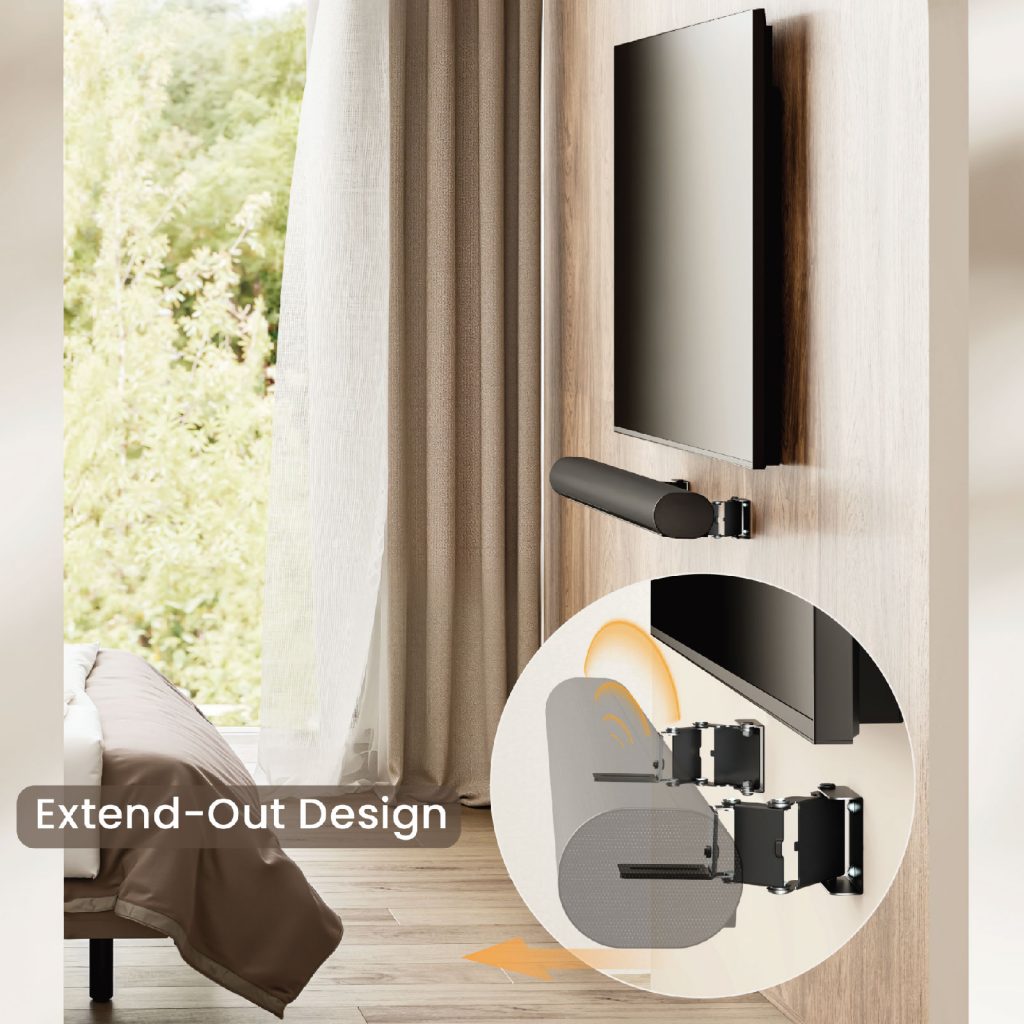

Audiophiles will be amazed with this innovative soundbar wall mount which features a unique extend-out structure that elevate the soundbar position by avoiding sound obstructions from the TV and cabinet. Besides, the availability of swivelling adjustment gives extra flexibility on positioning the soundbar at a more precise direction. Therefore, for those Dolby Atmos up-firing soundbars, user can expect an immersive and distortion-free sound. It is compatible with most soundbars of either back or bottom holes mounting.
PRODUCT HIGHLIGHTS

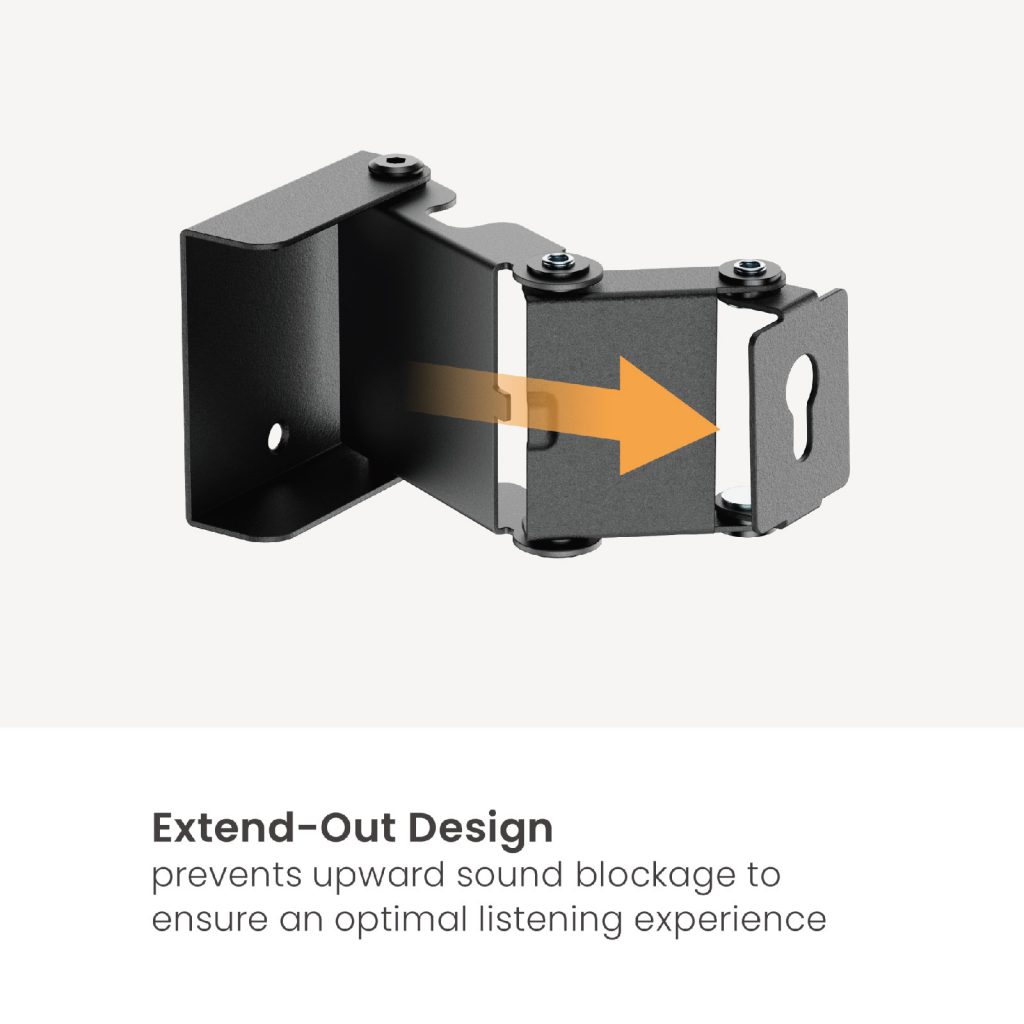

– Extend-out design delivers full Dolby Atmos immersion

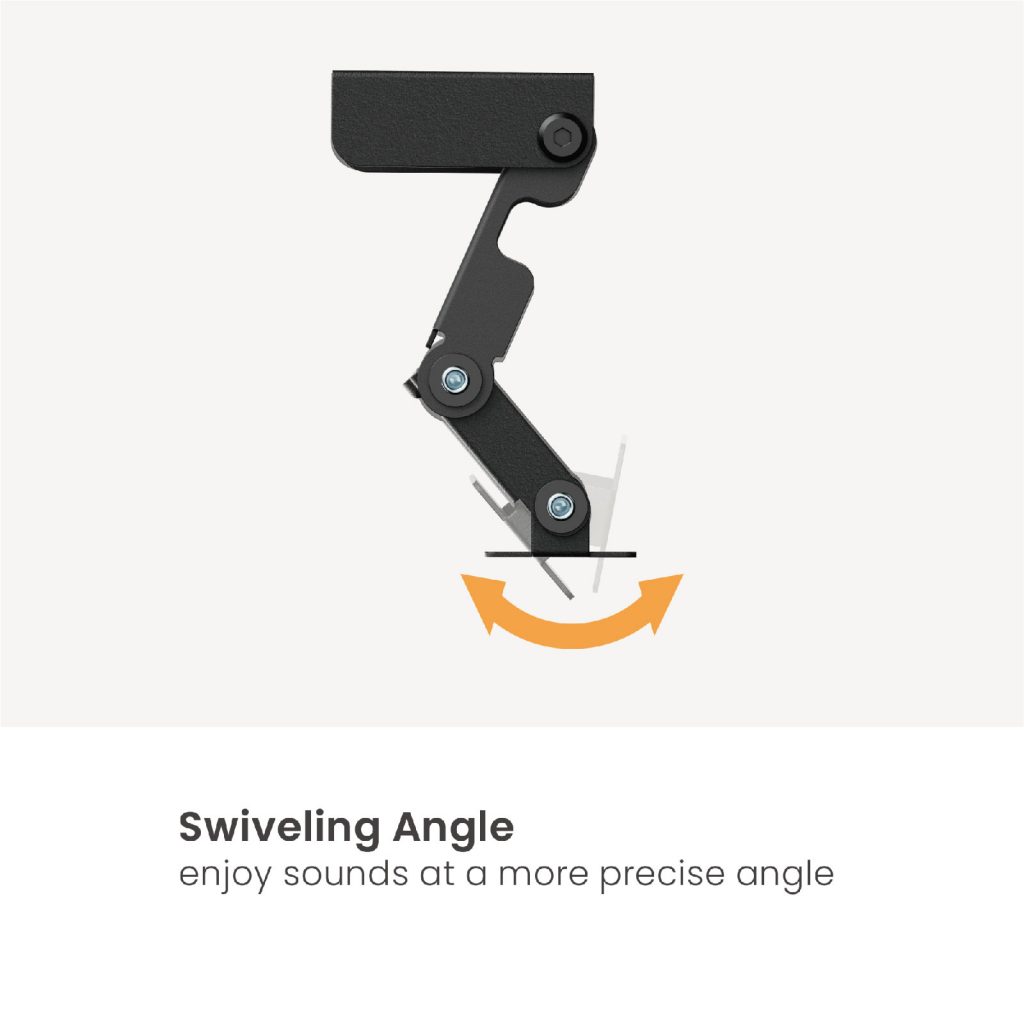

– Swivel adjustment for optimal listening experience

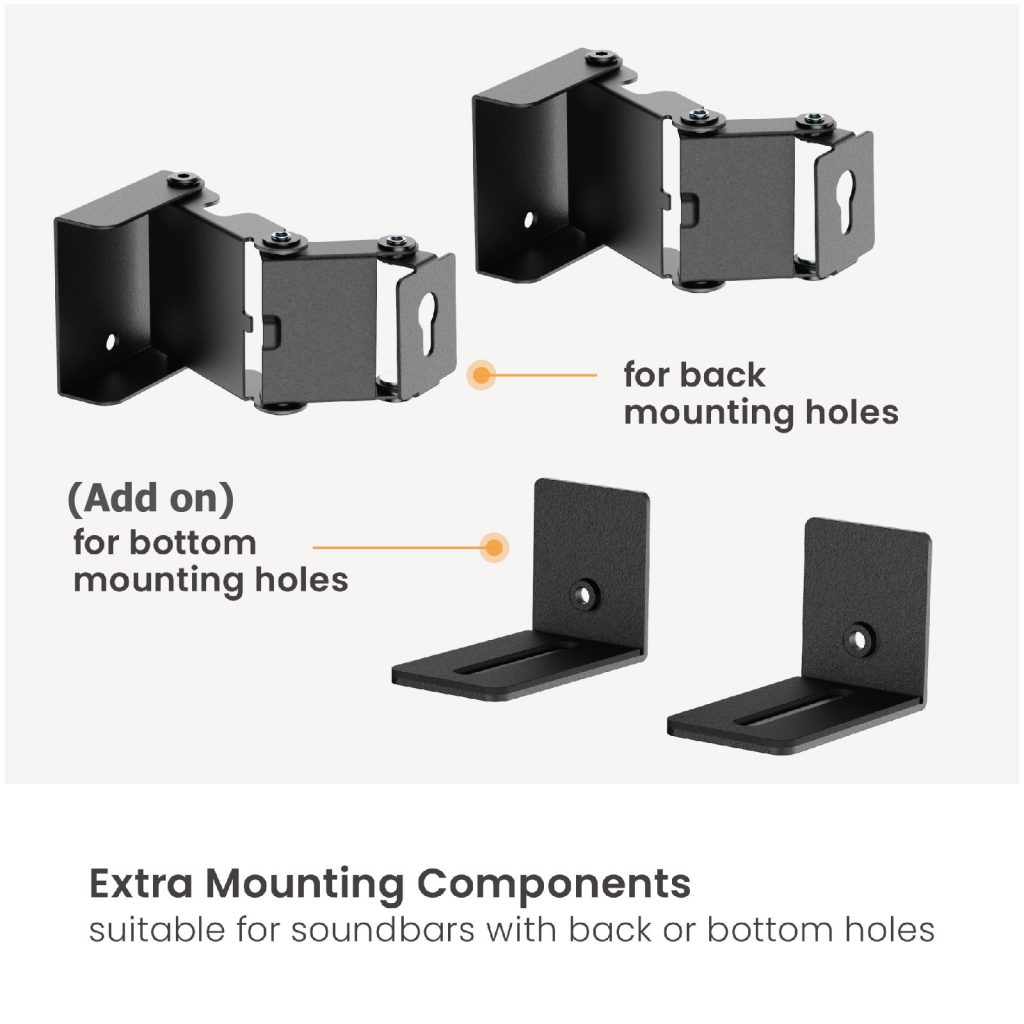

– Suitable for most soundbars with back or bottom mounting

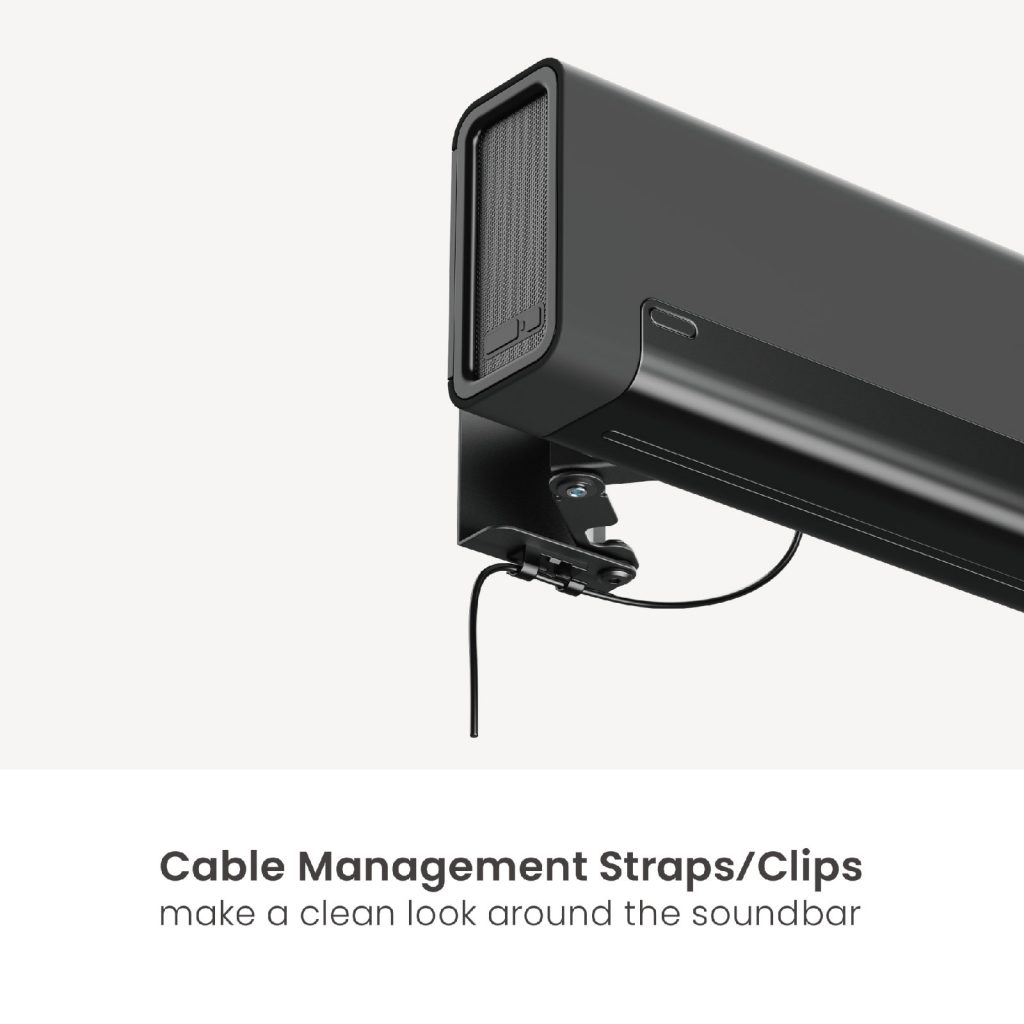

– Cable management
– Support weight up to 22lbs/ 10kg

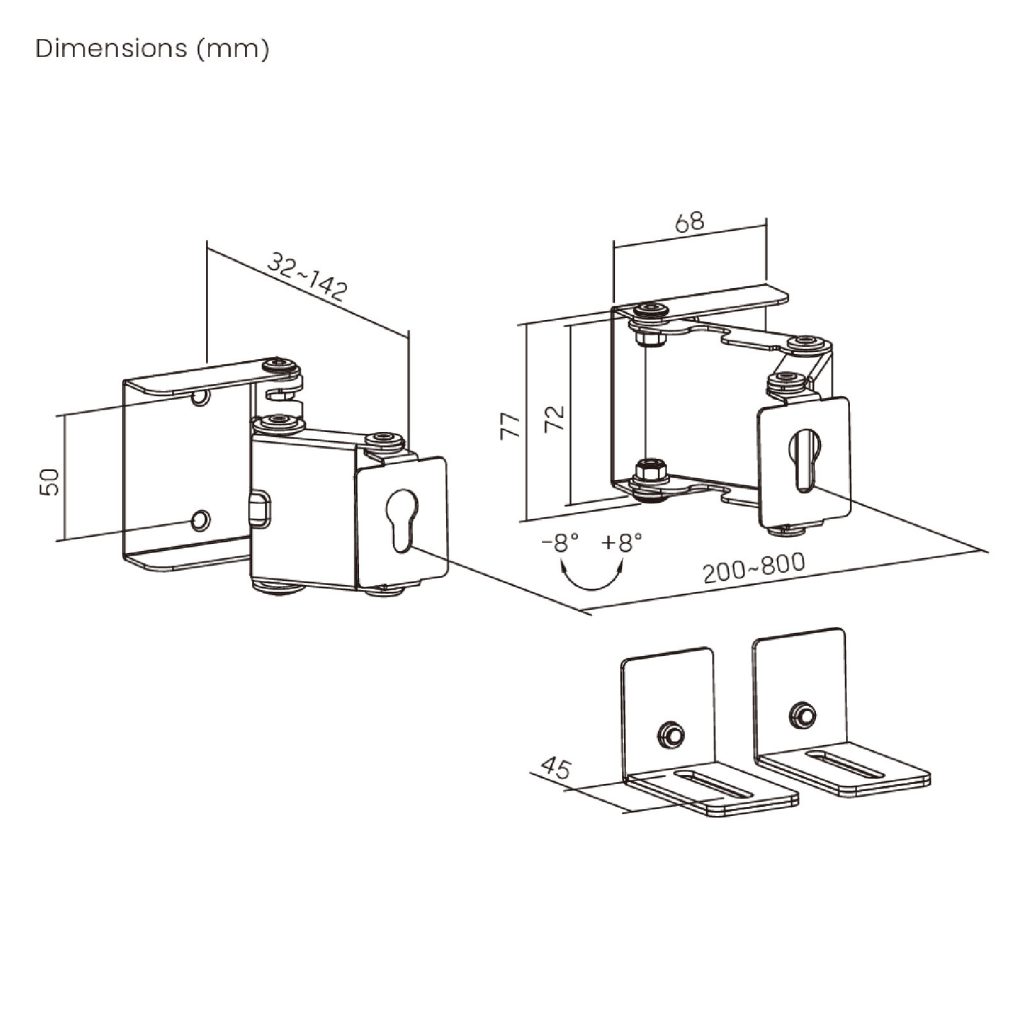

TECHNICAL DATA
| Type | Wall mount |
| Material | Steel, Plastic |
| Surface Finish | Powder coating |
| Loading Capacity | 22lbs/ 10kg |
| Extend-out Depth (Wall Mount) | 32 ~ 142mm |
| Swivel Range | -8° ~ +8° |
| Cable Management | Yes |
| Installation | Double stud, Solid wall mounted |
| Mounting Base Dimension (WxH) | 68×77 mm *each |
| Recommended Soundbar Holes Distance | 200 ~ 800 mm (in between) |
| Compatible Screw Mounting | Back, Bottom |
| Screw Mounting Size (Back) | M4, M5 |
| Screw Mounting Size (Bottom) | M4, M5, M6 |
| Depth Allowance (Bottom) | 45 mm |
| Dimension (Product), Extend out x Base | (32~142) x 68 x 77mm *each |
| Weight | Approx. 1.2kg |
